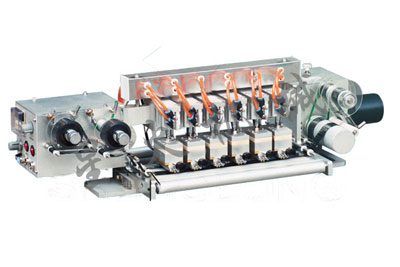

HP-602T 氣動多頭打碼機
產品特點
采用國際流行的環保型色帶替代油墨打印
高級鋁合金陽極處理、壽命更長
臺灣名牌氣缸及氣動元件、穩定可靠
T型打碼機，可直接輸入打印間距、自動收帶、精度高、節省耗材
與包裝機連接簡便、同步精度高
適用于果凍、水杯等全自動罐裝封口，包裝機的配套打碼，備有4個頭至24個頭單列、雙列等，全范圍滿足打碼要求
Printing ink can be substituted by internationally popular environment-friendly color strip for printion.
Anodic treatment of high class aluminum alloy has longer service lifetime.
Cylinder and pneumatic components of Taiwan famous brand is stable and reliable.
Printing spacing can be input into T-type code machine with features like automatic drawing back of color strip, high precision and saving of consumable material.
It can be simply connected to packing machine with high synchronous precision.
It is applicable to auxiliary code-making of full automatic canned capping and packing machine for jelly, water cup;4-head and 24-head single-row, double-row are available to meet the code-making needs in a wide range
產品參數
| 型號Model |
HP-602T |
| 電源電壓Voltage |
200V/50HZ |
| 功率Power |
550W |
| 工作速度Printing speed |
≥40pcs/min |
| 熱打印帶寬度Hot printer width |
Ma×35mm |
| 印字面積Printing area |
單列 one lines 4×35mm |
| 壓縮空氣Compressed air |
3kg/cm2 |
| 外形尺寸Size(L×W×H) |
850×230×250mm |
| 凈重Weight |
20kg |
